Copy of MILITARY TRAILER CABLE PLUG FOR VEHICLE SIDE - MS75020-1

$90.00

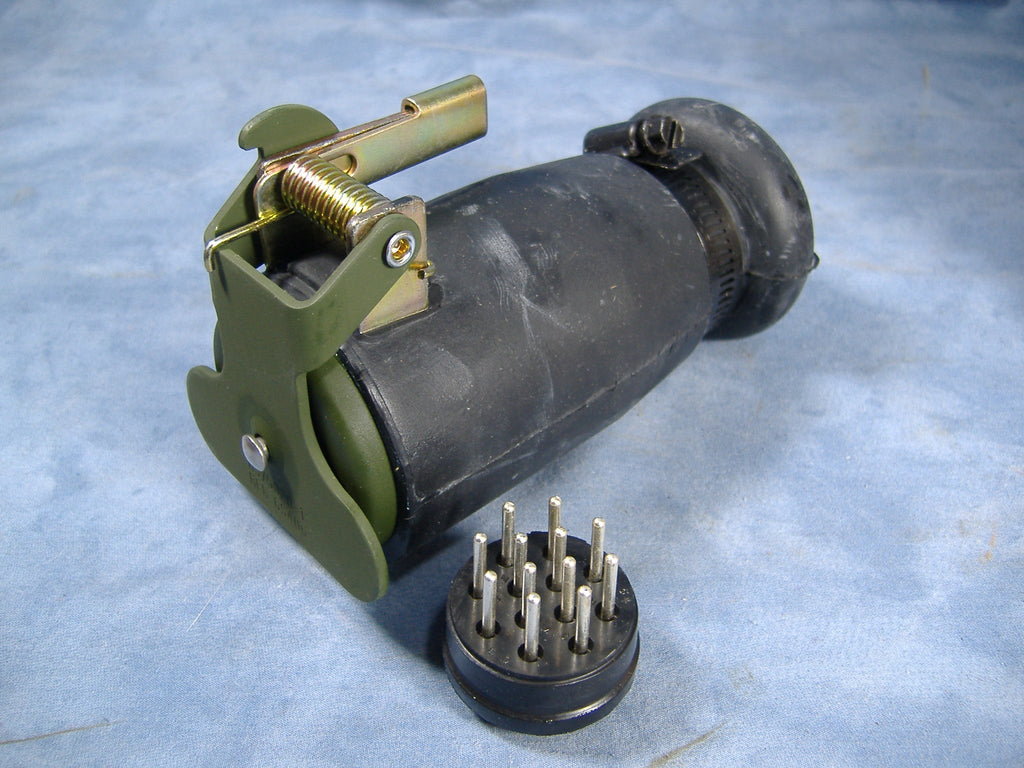

TRAILER CABLE PLUG FOR USE WITH MILITARY TACTICAL VEHICLES.
PART # MS75020-1, NSN 5935000592841
THIS PLUG IS FOR THE END OF THE CABLE THAT PLUGS INTO THE TRUCK. IT HAS MALE PINS IN IT TO PLUG INTO A FEMALE RECEPTACLE ON A MILITARY VEHICLE.

THIS IS A COMPLETE ASSEMBLY, WITH SOLDER CONNECTIONS, (NO SPECIAL TOOLS). ALL YOU SUPPLY IS WIRE AND THE OTHER END OF THE CABLE FOR THE TRAILER SIDE, WHICH I ALSO HAVE FOR SALE IN MY STORE.



Standard Military Vehicle Wiring By Letter Next To The Contact

A, C, H - Blackout tail lights and blackout clearance lights

B - Left turn signal and brake lights

D - ground

E - Tail, clearance, and marker lighting

F - Blackout brake light

J - Right turn signal and brake lights

K - axillary power feed used on semi tractor only

L, M, N - not used
